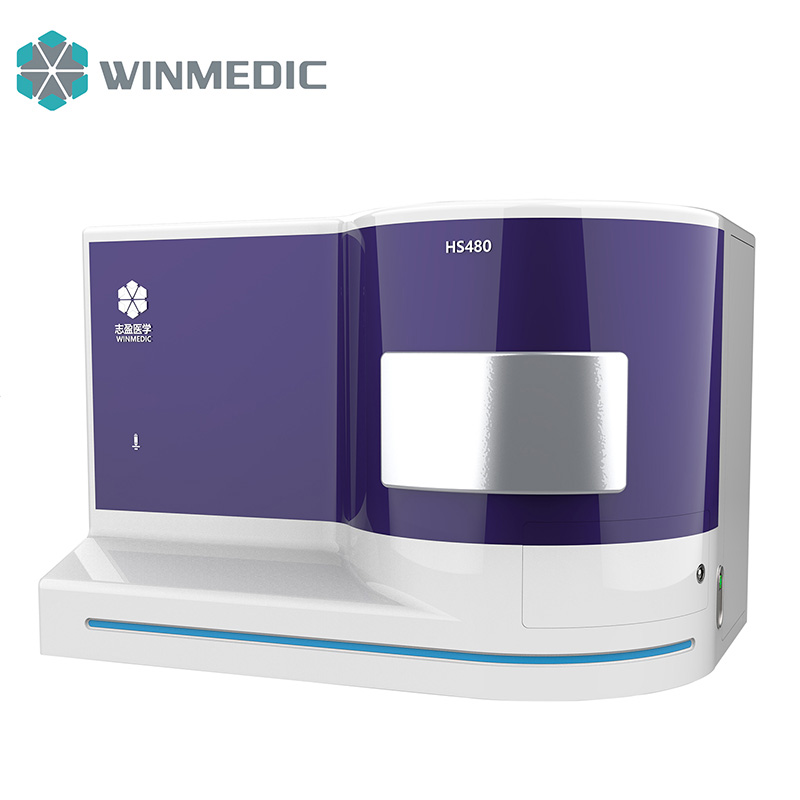

High Throughput Digital Pathology Slide Scanner
HS480 is compatible with the mainstream staining racks, realizing actual automatic one click walk-away scanning, improving workflow efficiency. It can meet the demands of daily slide scanning task in the pathology department of large hospitals, pathology diagnosis center, and third-party central laboratory.
Product Specifications
| Capacity | 480 slides |
| Scan Method | Area scanning with autofocus |
| Scan Area | Automatic identification / Manual selection |
| Scan Mode | Single layer / Extended focus / Z-stack |
| Light Source | LED |
| Resolution | Up to 0.17μm/pixel |
| Objective | PLAN APO 20X, N.A. 0.8 PLAN APO 40X, N.A. 0.95 |
| Label Identification | 1D and 2D barcode |
Slide Viewer
Key Features
| Pleasing Performance | - High speed and High quality at the same time |
| High Capacity | - Meet the needs of fully digital laboratories |
| Precise Detection | - Precise detection of slide position and sample area |
| Automatic Naming | - 1D and 2D barcode recogonization |
| Multiple Layers | - Extended Focus, Z-stack |
| Clean Presentation | - Automatic removal of impurities |
| Multi-Windows | - Up to 9 slides comparison on a screen |
| Easier Workflow | - Compatible with stainer basket |
